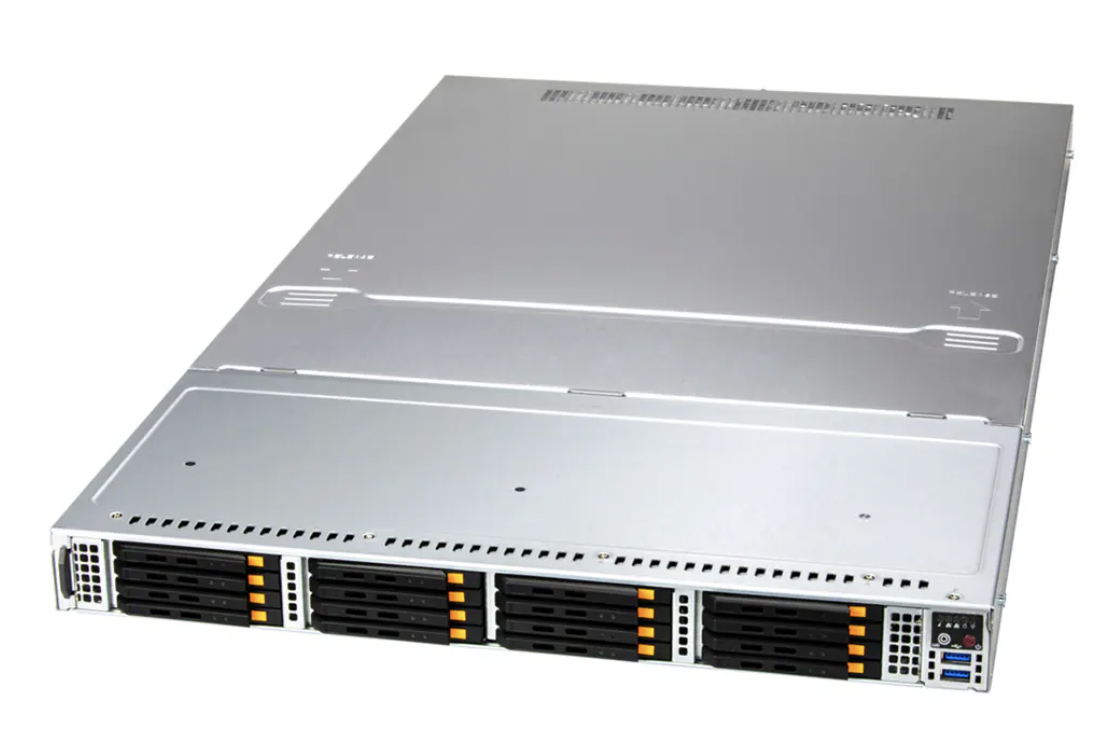

Storage SuperServer SSG-121E-NE316R

• Dual Socket E (LGA-4677)

• 4th Gen Intel® Xeon® Scalable processors

• Future support for the upcoming 5th Gen Intel® Xeon® processors

• Memory Capacity: 32 DIMM slots

• Up to 8TB: 32x 256 GB DRAM

• Memory Type: 4800MHz ECC DDR5 RDIMM;LRDIMM

Memory Voltage

• 1.1 V

Error Detection

• ECC

• Intel®  C741

Via AIOM

IPMI

• Support for Intelligent Platform Management Interface v.2.0

• IPMI 2.0 with virtual media over LAN and KVM-over-LAN support

• 1 RJ45 Dedicated IPMI LAN port

• 4 USB 3.0 port(s) (2 front; 2 rear)

• 1 VGA  port(s)

• AMI 32MB SPI Flash EEPROM

• IPMI 2.0

• KVM with dedicated LAN

• Super Diagnostics Offline

• SuperDoctor® 5

• Supermicro Update Manager (SUM)

• Supermicro Power Manager (SPM)

• Supermicro Server Manager (SSM)

• Redfish API

• Trusted Platform Module (TPM) 2.0

• Silicon Root of Trust (RoT) – NIST 800-193 Compliant

Features

• Cryptographically Signed Firmware

• Secure Boot

• Secure Firmware Updates

• Automatic Firmware Recovery

• Supply Chain Security: Remote Attestation

• Runtime BMC Protections

• System Lockdown

• 1U   Rackmount

Model

• CSE-126E32-R1K62P

• Power On/Off


LEDs

• Network activity

• Power status

• SSD activity

• System information (overheat/UID)


• 2 PCIe 5.0 x16 FH slot(s)

• 2 PCIe 5.0 x16 AIOM slot(s)

•

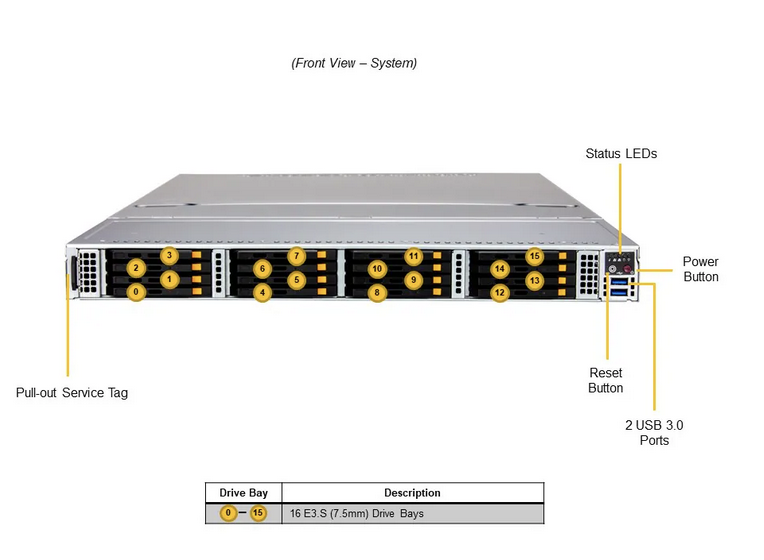

• 16x E3.S Hot-swap NVMe (1T) drive slots

M.2

• 2x PCIe 3.0 (Hybrid NVMe or SATA3)

• M-Key, 2280 and 22110

• 8 Heavy Duty 4cm Fan(s)

• RoHS Compliant

Environmental Spec.

• Operating Temperature:
     10°C ~ 35°C (50°F ~ 95°F)

• Non-operating Temperature:
     -40°C to 60°C (-40°F to 140°F)

• Operating Relative Humidity:
     8% to 90% (Non-condensing)

• Non-operating Relative Humidity:
     8% to 95% (Non-condensing)
