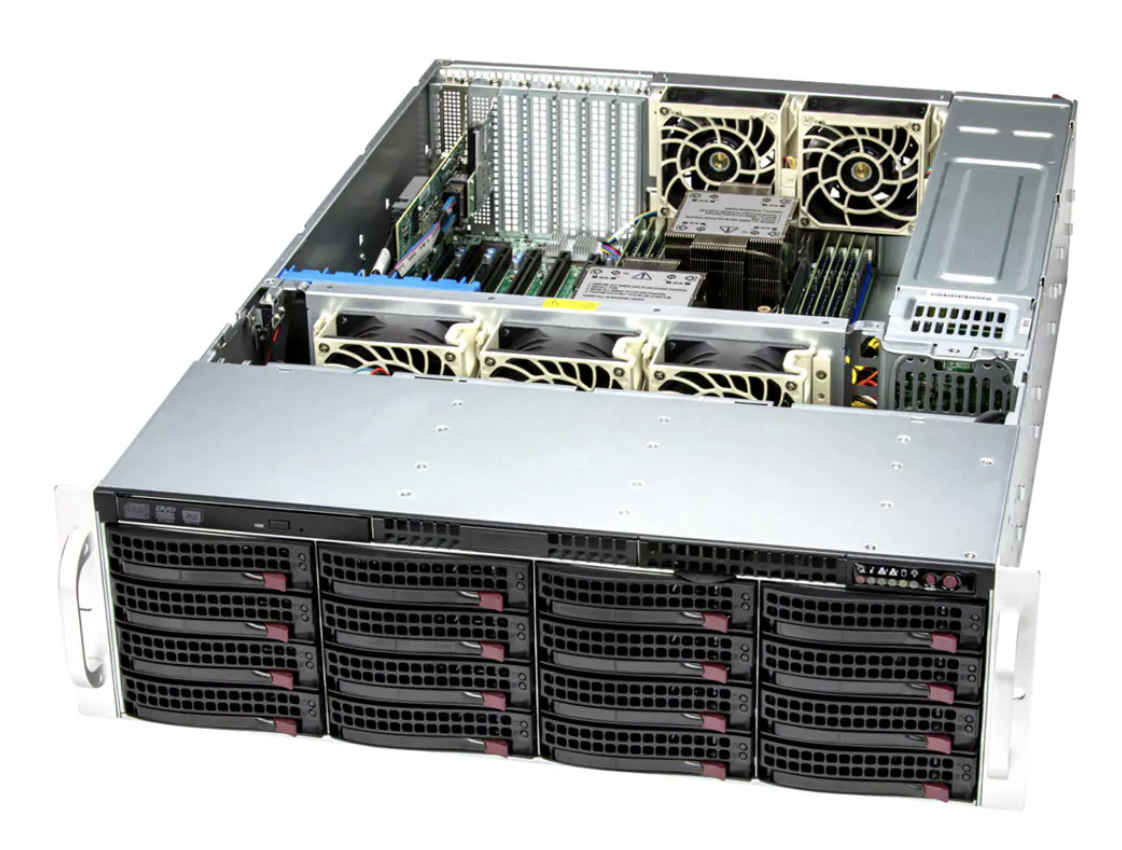

Storage SuperServer SSG-631E-E1CR16L

• Dual Socket E (LGA-4677)

• 4th Gen Intel® Xeon® Scalable processors

• Future support for the upcoming 5th Gen Intel® Xeon® processors

Note

• Supports 120W - 270W TDP CPUs (Air Cooled)

• Intel®  C741

Network Connectivity

• 2x 10GbE BaseT with Broadcom BCM57416

IPMI

• Support for Intelligent Platform Management Interface v.2.0

• IPMI 2.0 with virtual media over LAN and KVM-over-LAN support

• 1 RJ45 Dedicated IPMI LAN port

• 2 Onboard 10 GbE LAN Ports

USB

• 4 USB 3.0 port(s) (4 Rear_USB)

Video

• 1 VGA  port(s)

Serial Port

• 1 COM  Port(s) (1 rear)

DOM

• 2 SuperDOM (Disk on Module) port

• ACPI Power Management

• Power-on mode for AC power recovery

• Trusted Platform Module (TPM) 2.0

• Silicon Root of Trust (RoT) – NIST 800-193 Compliant

Features

• Cryptographically Signed Firmware

• Secure Boot

• Secure Firmware Updates

• Automatic Firmware Recovery

• Supply Chain Security: Remote Attestation

• Runtime BMC Protections

• System Lockdown

• 7+1 Phase-switching voltage regulator

• Monitors for CPU Cores, Chipset Voltages, Memory

FAN

• Fans with tachometer monitoring

• Pulse Width Modulated (PWM) fan connectors

• Status monitor for speed control

Temperature

• Monitoring for CPU and chassis environment

• Thermal Control for fan connectors

• 3U   Rackmount

Model

• CSE-836BTS-R1K23BP2

• Power On/Off


LEDs

• HDD activity

• Network activity

• Power status

• System information (overheat/UID)

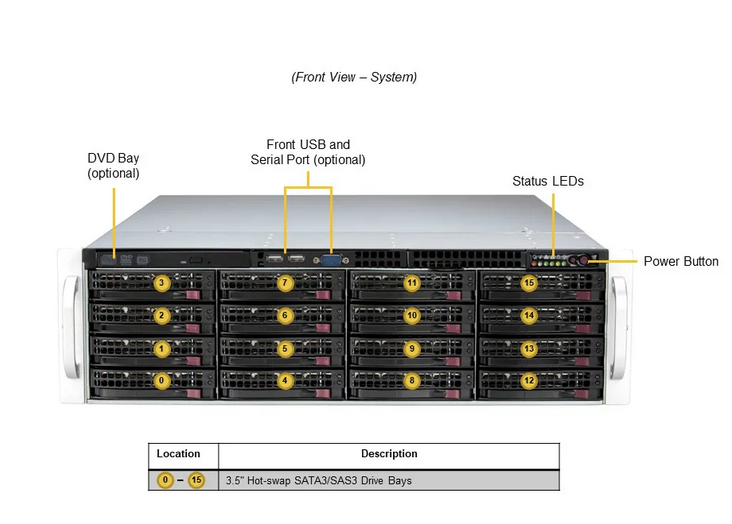

Hot-swap 16x 3.5"  hot-swap SATA3/SAS3  drive bays (2x 2.5" hot-swap SATA3 rear drive bays)

M.2

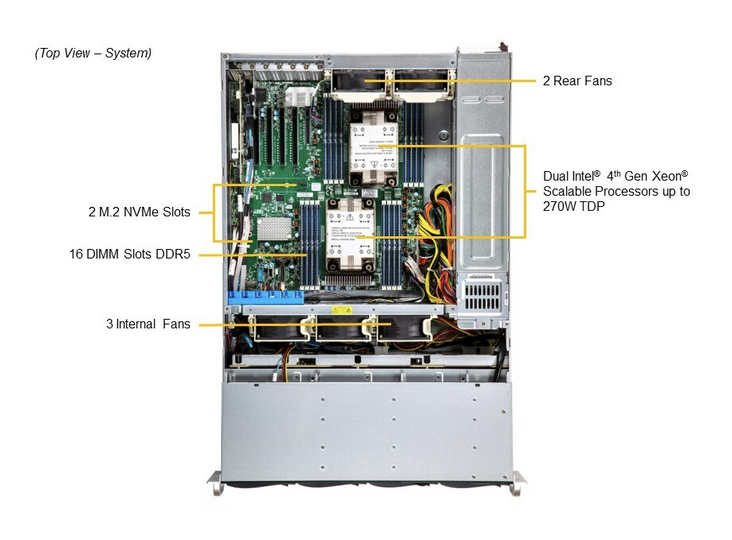

• 2 M.2 NVMe

• M-Key, 2280 and 22110

• 5 Heavy Duty 8cm Fan(s)

• RoHS Compliant

Environmental Spec.

• Operating Temperature:
     10°C ~ 35°C (50°F ~ 95°F)

• Non-operating Temperature:
     -40°C to 60°C (-40°F to 140°F)

• Operating Relative Humidity:
     8% to 90% (Non-Condensing)

• Non-operating Relative Humidity:
     5% to 95% (Non-Condensing)
