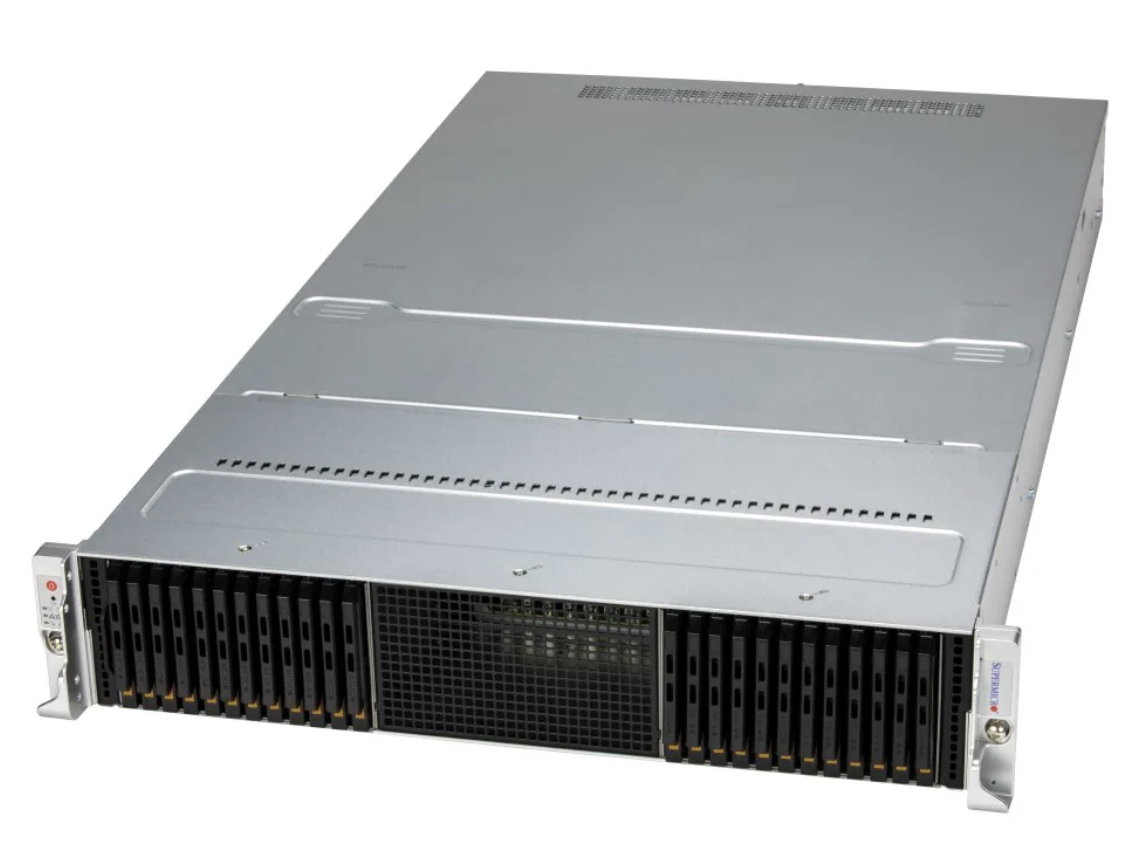

Storage SuperServer SSG-221E-NE324R

• Dual Socket E (LGA-4677)

• 4th Gen Intel® Xeon® Scalable processors

• Future support for the upcoming 5th Gen Intel® Xeon® processors

• NVIDIA PCIe: T1000, BF2

• PCIe 5.0 x16 CPU-to-GPU Interconnect

• PCIe

• Memory Capacity: 32 DIMM slots

• Up to 8TB: 32x 256 GB DRAM

• Memory Type: 4800MHz ECC DDR5 RDIMM;LRDIMM

• Intel®  C741

• Via AIOM

• Support for Intelligent Platform Management Interface v.2.0

• IPMI 2.0 with virtual media over LAN and KVM-over-LAN support

• Trusted Platform Module (TPM) 2.0

• Silicon Root of Trust (RoT) – NIST 800-193 Compliant

Features

• Cryptographically Signed Firmware

• Secure Boot

• Secure Firmware Updates

• Automatic Firmware Recovery

• Supply Chain Security: Remote Attestation

• Runtime BMC Protections

• System Lockdown

• 7 Phase-switching voltage regulator

• Monitors for CPU Cores, Chipset Voltages, Memory

FAN

• Fans with tachometer monitoring

• Pulse Width Modulated (PWM) fan connectors

• Status monitor for speed control

Temperature

• Monitoring for CPU and chassis environment

• Thermal Control for fan connectors

• 2U   Rackmount

Model

• CSE-236E3-R2K08P

• 1 PCIe 5.0 x8 FH slot(s)

• 1 PCIe 5.0 x16 FH slot(s)

• 1 PCIe 5.0 x8 AIOM slot(s)

• 1 PCIe 5.0 x16 AIOM slot(s)

• 8 Heavy Duty 8cm Fan(s)

• RoHS Compliant

Environmental Spec.

• Operating Temperature:
     10°C ~ 35°C (50°F ~ 95°F)

• Non-operating Temperature:
     -40°C to 60°C (-40°F to 140°F)

• Operating Relative Humidity:
     8% to 90% (Non-Condensing)

• Non-operating Relative Humidity:
     5% to 95% (Non-Condensing)
